Frida —— 初体验

来自于Awesome Frida的介绍

Frida is Greasemonkey for native apps, or, put in more technical terms, it’s a dynamic code instrumentation toolkit. It lets you inject snippets of JavaScript into native apps that run on Windows, Mac, Linux, iOS and Android.

Frida可以认为是原生应用的油猴脚本，或其他更专业的技术术语。它是一种动态插桩工具集，可以将js代码插入到在Windows、Mac、Linux、iOS、Android上运行的原生应用中。

1. 比较

0x01 安装

1. 安装frida

    > pip install frida frida-tools

2. 下载对应版本frida-server，使用adb推送

    > adb push frida-server /data/local/tmp/

3. root 下执行frida-server

    > adb shell
    bullhead:/ $ su -
    bullhead:/ # cd /data/local/tmp
    bullhead:/ # chmod +x frida-server
    bullhead:/ # ./frida-server

0x02 测试机选择

经测试最好还是使用物理机，x64架构虚拟机上很多app无法安装，arm虚拟机太卡且有时候frida会莫名报错

Android

选用Nexus 5X，刷8.1.0 & Magisk，具体操作可见参考资料1

iOS

待更新

0x0N Crackme

环境

• 主机

  • frida

• 手机

  • Nexus 5 (with Android 8.1.0) 已 root
  • frida-server

注意

需要要注意几点

1. setImmediate据说可以避免一些执行时间过长问题
2. 使用-f参数 新启动并暂时挂起进程，然后待布置好hook代码后再恢复进程运行，配合使用--no-pause取消挂起相当于直接创建一个新进程后进行hook，这里在hook onCreate时会有问题，下面会提到

一些常用命令

安装apk

> adb install UnCrackable-Level1.apk

快捷截图

> adb shell screencap -p > `date "+%Y%m%d%H%M%S"`.png

Crack

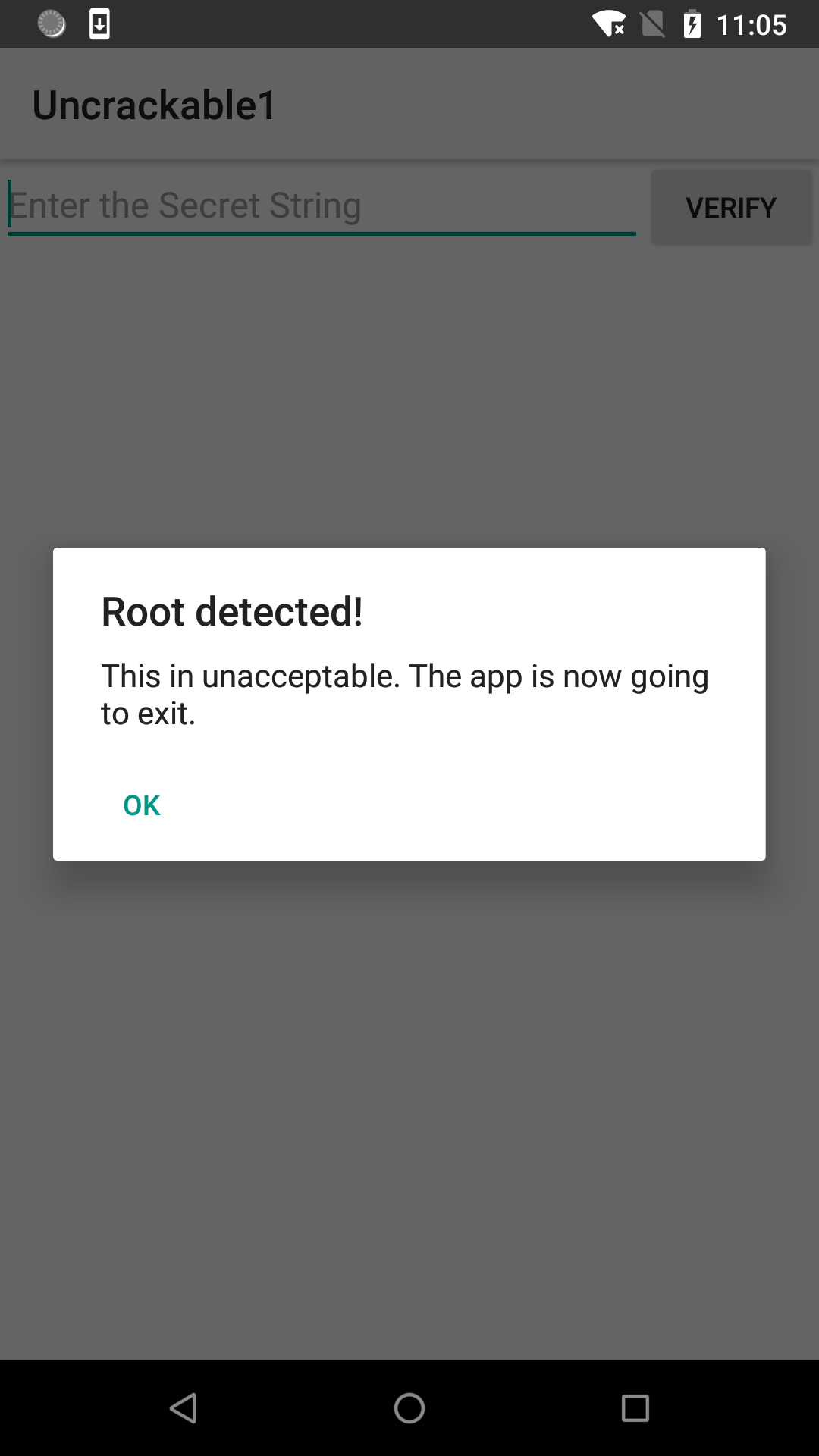

1. 启动后会检测是否Root



2. 查看检测代码，将apk拖入到jadx-gui中

    public class MainActivity extends Activity {
        private void a(String str) {
            AlertDialog create = new Builder(this).create();
            create.setTitle(str);
            create.setMessage("This in unacceptable. The app is now going to exit.");
            create.setButton(-3, "OK", new b(this));
            create.setCancelable(false);
            create.show();
        }

        protected void onCreate(Bundle bundle) {
            if (c.a() || c.b() || c.c()) {
                a("Root detected!");
            }
            if (b.a(getApplicationContext())) {
                a("App is debuggable!");
            }
            super.onCreate(bundle);
            setContentView(R.layout.activity_main);
        }

        public void verify(View view) {
            String obj = ((EditText) findViewById(R.id.edit_text)).getText().toString();
            AlertDialog create = new Builder(this).create();
            if (a.a(obj)) {
                create.setTitle("Success!");
                create.setMessage("This is the correct secret.");
            } else {
                create.setTitle("Nope...");
                create.setMessage("That's not it. Try again.");
            }
            create.setButton(-3, "OK", new c(this));
            create.show();
        }
    }

3. 这里有两种方法

   1. 通过所有检测，即Hook掉c.a&c.b&c.c&b.a

   2. 注意到弹窗的监听类为b，可Hook b.onClick不执行退出

      class b implements OnClickListener {
       final /* synthetic */ MainActivity a;

       b(MainActivity mainActivity) {
           this.a = mainActivity;
       }

       public void onClick(DialogInterface dialogInterface, int i) {
           System.exit(0);
       }
      }

4. 先尝试ii中的Hook b.onClick

    setImmediate(function () {
        Java.perform(function(){
            cClass = Java.use("sg.vantagepoint.uncrackable1.b");
            cClass.onClick.implementation = function () {
                console.log("[!] hook click");
            }})
    });

   注入脚本，点击ok按钮

    > frida -U -f sg.vantagepoint.uncrackable1 -l 1.js --no-pause
         ____
        / _  |   Frida 12.2.29 - A world-class dynamic instrumentation toolkit
       | (_| |
        > _  |   Commands:
       /_/ |_|       help      -> Displays the help system
       . . . .       object?   -> Display information about 'object'
       . . . .       exit/quit -> Exit
       . . . .
       . . . .   More info at http://www.frida.re/docs/home/
    Spawned `sg.vantagepoint.uncrackable1`. Resuming main thread!
    [LGE Nexus 5X::sg.vantagepoint.uncrackable1]-> [!] Hook click
    [LGE Nexus 5X::sg.vantagepoint.uncrackable1]-> exit

    Thank you for using Frida!

5. 尝试i中Hook onCreate

   初步尝试在加上--no-pauseZygote启动后，由于取消挂起这时候代码并没有hook进去，而是在onCreate结束后才开始注入，所以需要去掉--no-pause等待 hook 后恢复进程，会比较耗时，但能正常 hook onCreate

    > frida -U -f package -l script_file

   Hook脚本

    setImmediate(function () {
        Java.perform(function(){
            cClass = Java.use("sg.vantagepoint.a.c");
            cClass.a.implementation = function () {
                console.log('[!] Hook c.a');
                return false;
            };
            cClass.b.implementation = function () {
                console.log('[!] Hook c.a');
                return false;
            };
            cClass.c.implementation = function () {
                console.log('[!] Hook c.c');
                return false;
            };
            bClass = Java.use("sg.vantagepoint.a.b");
            bClass.a.implementation = function () {
                console.log('[!] Hook b.a');
                return false;
            }
        })
    });

   执行注入，就没有弹窗了

    > frida -U -f sg.vantagepoint.uncrackable1 -l 1.js
         ____
        / _  |   Frida 12.2.29 - A world-class dynamic instrumentation toolkit
       | (_| |
        > _  |   Commands:
       /_/ |_|       help      -> Displays the help system
       . . . .       object?   -> Display information about 'object'
       . . . .       exit/quit -> Exit
       . . . .
       . . . .   More info at http://www.frida.re/docs/home/
    Spawned `sg.vantagepoint.uncrackable1`. Use %resume to let the main thread start executing!
    [LGE Nexus 5X::sg.vantagepoint.uncrackable1]-> [!] Hook c.a
    [!] Hook c.a
    [!] Hook c.c
    [!] Hook b.a
    [LGE Nexus 5X::sg.vantagepoint.uncrackable1]-> exit

    Thank you for using Frida!

6. 接下来是一个输入字符串返回比较结果，事件函数为a.a，重要的是获取bArr，即sg.vantagepoint.a.a.a返回结果

    public class a {
        public static boolean a(String str) {
            byte[] bArr = new byte[0];
            try {
                bArr = sg.vantagepoint.a.a.a(b("8d127684cbc37c17616d806cf50473cc"), Base64.decode("5UJiFctbmgbDoLXmpL12mkno8HT4Lv8dlat8FxR2GOc=", 0));
            } catch (Exception e) {
                Log.d("CodeCheck", "AES error:" + e.getMessage());
            }
            return str.equals(new String(bArr));
        }

        public static byte[] b(String str) {
            int length = str.length();
            byte[] bArr = new byte[(length / 2)];
            for (int i = 0; i < length; i += 2) {
                bArr[i / 2] = (byte) ((Character.digit(str.charAt(i), 16) << 4) + Character.digit(str.charAt(i + 1), 16));
            }
            return bArr;
        }
    }

   sg.vantagepoint.a.a.a代码如下，我们不用在意代码内容，只要 hook 结果就好了

    public class a {
        public static byte[] a(byte[] bArr, byte[] bArr2) {
            Key secretKeySpec = new SecretKeySpec(bArr, "AES/ECB/PKCS7Padding");
            Cipher instance = Cipher.getInstance("AES");
            instance.init(2, secretKeySpec);
            return instance.doFinal(bArr2);
        }
    }

   Hook 代码，使用this.a调用原a函数

    setImmediate(function () {
        Java.perform(function(){
            ...
            aaClass = Java.use("sg.vantagepoint.a.a");
            aaClass.a.implementation = function (arg1, arg2) {
                pass = "";
                s = this.a(arg1, arg2);
                for(i=0; i<s.length; i++) {
                    pass += String.fromCharCode(s[i]);
                }
                console.log("[*] content: " + pass);
                return s;
            }
        })
    });

   执行代码，获取隐藏内容

    > frida -U -f sg.vantagepoint.uncrackable1 -l 1.js --no-pause
         ____
        / _  |   Frida 12.2.29 - A world-class dynamic instrumentation toolkit
       | (_| |
        > _  |   Commands:
       /_/ |_|       help      -> Displays the help system
       . . . .       object?   -> Display information about 'object'
       . . . .       exit/quit -> Exit
       . . . .
       . . . .   More info at http://www.frida.re/docs/home/
    Spawned `sg.vantagepoint.uncrackable1`. Resuming main thread!
    [LGE Nexus 5X::sg.vantagepoint.uncrackable1]-> [!] Hook click
    [*] content: I want to believe
    [LGE Nexus 5X::sg.vantagepoint.uncrackable1]-> exit

    Thank you for using Frida!

参考资料

1. https://www.52pojie.cn/thread-836277-1-1.html
2. https://github.com/iromise/AOS-Note/blob/42544f4635/frida-exp/frida.md
3. https://github.com/dweinstein/awesome-frida
